*rollout  7th January 1997

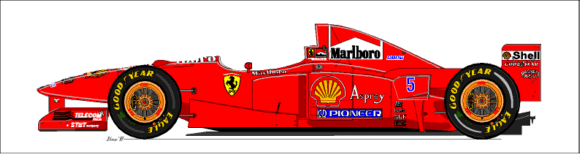

technical Specification: Ferrari F310 B

The Chassis: Model: Ferrari F310 B Length: 4,358 mm Wheelbase: 2,935 mm Front Track: 1,690 mm Rear Track: 1,605 mm Heigth: 968 mm Width: 1.995 mm Chassis: carbon fiber and honeycomb composite structure Gearbox: 7+Reverse, longitudinal Electronic: Magneti Marelli Brakes: Brembo Tyres Goodyear Rim: BBS Wheels: 13" Total Weight: 600 kg	The Engine: Typ: Ferrari 046/2 V10 Number of Cylinders: 10 in V/75 degrees Number of Valves: 40 Total Displacement: 2,998 cc Measurements: Length: 590 mm Width: 540 mm Height: 432 mm Weight: 115 kg Power: >650 hp Fuel and Lubricant: Shell Constructor: Gilles Somon	The Drivers: Name: Start-Number: Michael Schumacher 5 Eddi Irivine 6
		The Team: Leader: Jean Todt Chiefengineer: Ross Brawn
		Helmet: M.Schumacher
