MAGLEV VEHICLES
for passengers and containerised part-load trafic
- contactless support, guidance and drive technology:
- by controlled electromagnets and a synchronous iron-cored long-stator motor
- maximum avialability and safty:
- by functionally redundant modularised construction of the electromagnetic support and
guidance system
- high travelling comfort:
- by favorable mass ratios and contacless traction
- low energy consumption:
- by optimised aerodynamic shape
even at speeds up to 500 km/h (311.6 mph)
operation by minimum wear and tear
- dimensioned for:
- temperatures of -20 to 40 degree Celsius (-4 to 104 degree Fahrenheit)
crosswind velocities up to 25 m/s (82.0 ft/sec)
/ back to the table of contents /
maglev Transrapid 05 - the first
train really used by passengers
- line: Testtrack in Hamburg during International Traffic Exhibition
(IVA) in Germany
- line legth: 908 m (2,979.1 ft)
- travel velocity: 75 km/h (46.6 mph)
- passengers: 50 thausend
- Transrapid - 05
- producer: Krauss-Maffei, MBB in 1979
- engine: controlled electromagnets and synchronous iron-cored long-stator motor
- seats: for 68 passengers
- geometric measurements:
- overall length: 2 x 15.450 mm (2 x 608.3 in)
- width: 3.650 mm (143.7 in)
- height: 4.060 mm (159.8 in)
more detailed view
/ back to the table of contents /
- line: Testtrack in the Emsland about 10 km (6 miles) far from
Papenburg in Germany
- line legth(first part): 20,6km (12.8 miles)
- record setted up: 18-Aug-84
- velocity record: 302 km/h (187.7 mph )
- line legth(closed cycle): 31,5 km (19.6 miles)
- record setted up: 22-Jan-88
- velocity record: 412,6 km/h (256.4 mph )

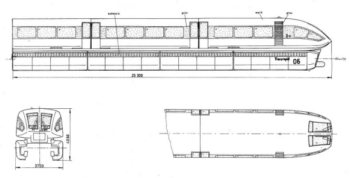

- Transrapid - 06
- producer: Krauss-Maffei, MBB, Thyssen Henschel in 1984
- engine: controlled electromagnets and synchronous iron-cored long-stator motor
- seats: for 192 passengers
- geometric measurements:
- overall length: 2 x 25.300 mm (2 x 996.1 in)
- width: 3.700 mm (145.7in)
- height: 4.060 mm (159.8 in)
more detailed view
/ back to the table of contents /
- line: Testtrack in the Emsland about 10 km (6 miles) far from
Papenburg in Germany
- line legth(closed cycle): 31,5 km (19.6 miles)
- record setted up: 10-Jun-93
- velocity record: 450 km/h (279.6 mph)
- track with electro-magnets
- geometric measurements:
- height: 0 - 4.500 mm (0 - 177.2 in)
- width: 2.950 mm (116.1 in)
more details of the track
- Transrapid - 07
- producer: Thyssen Henschel in 1984
- administration: Magnetschnellbahn AG Germany
- engine: controlled electromagnets and synchronous iron-cored long-stator motor
- magnet center distance: 2.450 mm (96.5 in)
- starting acceleration: 0,8 m/sec. power two (2.6 ft/sec. power two)
- seats: for 164 passengers
- geometric measurements:
- overall length: 2 x 26.990 mm (2 x 1062.6 in)
- width: 3.700 mm (145.7 in)
- height: 4.060 mm (159.8 in)
more detailed view
/ back to the top of Transrapid - history /
Lux's type collection of Transrapid - history
* bibliography
- eisenbahn Modellbahn magazin, 6/1992, Aerodynamik auf Schienen, S.18-21 -
- Modell EisenBahner, 4/1994, Mit High Speed durch ..., S.6-10 -
- Bahn-Special, 1/1991, Die Neue Bahn -
- Bahn-Special, 2/1994, Schnellverkehr und Superzüge -
- Eisenbahn Kurier Special, 21 (II.Quartal '91), Hochgeschwindigkeitsverkehr -
- R.L.Temming, Eisenbahn für morgen schon heute , verlegt bei Kaiser, 1990 -
- J.Klühspies, Laufendes Forschungsprojekt:Transrapid -
