engine: ??

power: 2 300 hp

manufacturer: Shodino (near Minsk) Belorussian

• Belaz 75211
  • Front Track: ca.6 450 millimeters
  • Rear Track: ca.5 300 / 6 450 millimeters
  • Wheelbase: ca.6 900 millimeters
  • Overall Car Length: ca.14 300 millimeters
  • Heigth: ca.6 400 millimeters
  • Width: ca.7 900 millimeters
  • Wheels (diameter): ca.3 400 millimeters
  • Tyres: Belshina FT-117
  • Payload: 170 Tonnes

side view

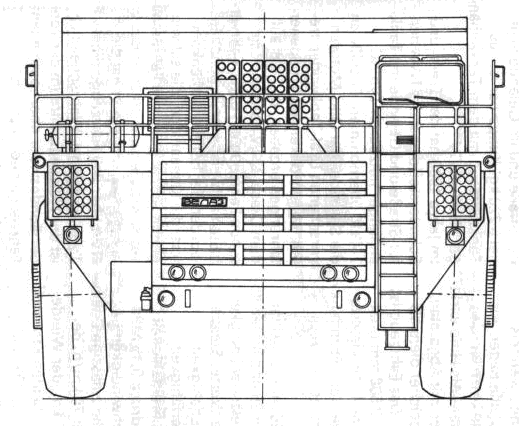

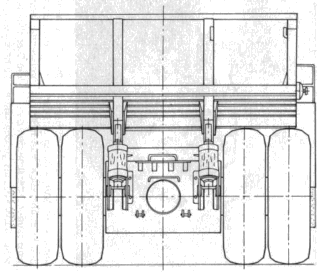

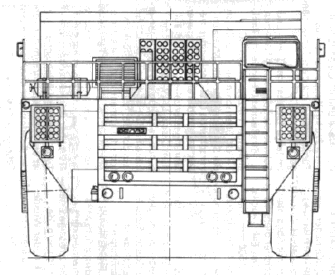

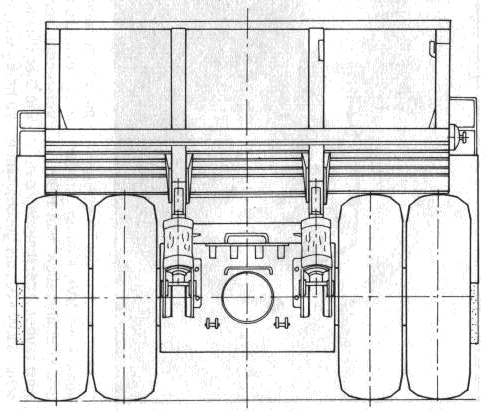

front / rear view

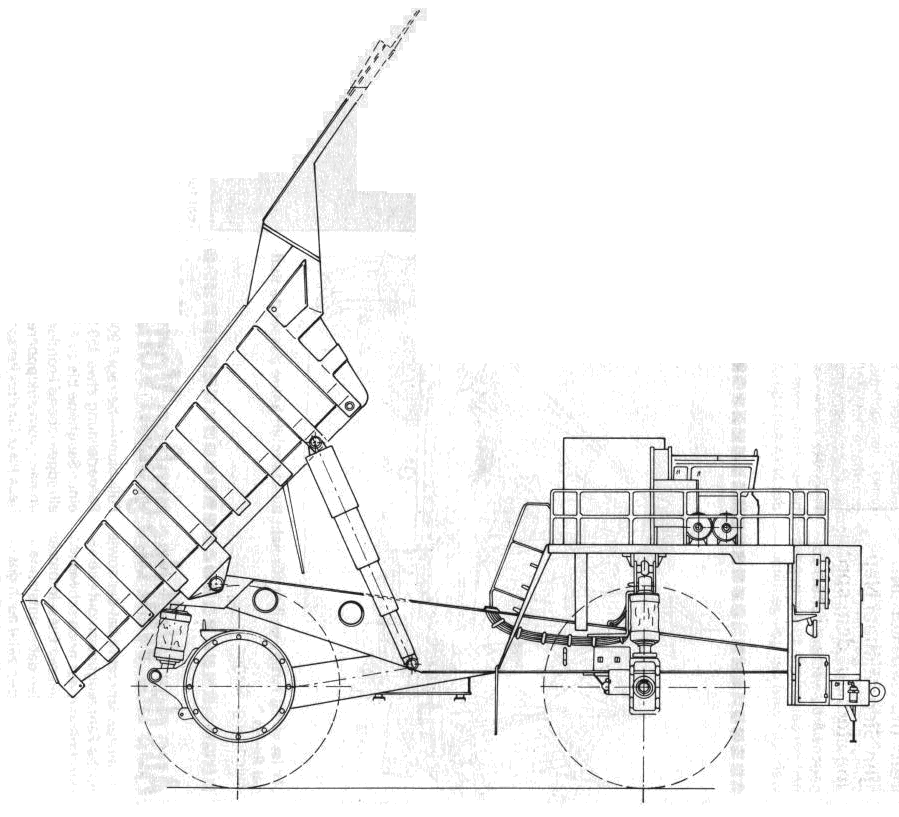

upload position

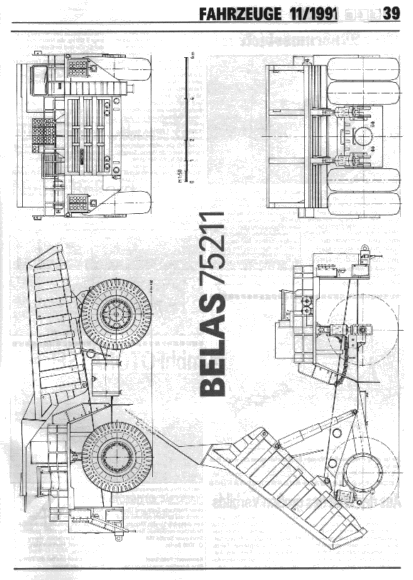

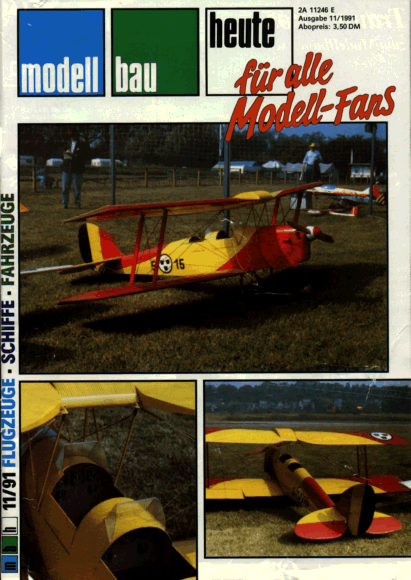

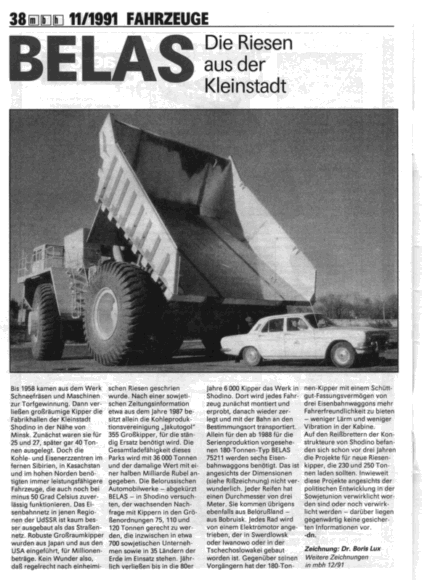

modellbau heute 91/11

/ back to the top of Trucks BELAZ 75211 - 1982 /

* bibliography

•  modellbau heute, 11/91 BELAS - Die Riesen aus der Kleinstadt

* web sites

•  Belaz Minsk - truck overview
•  Belshina Tyre Works - tyres overview
•  Belaz Russia - truck overview
