engine: ??

power: ?? hp

manufacturer: Shodino (near Minsk) Belorussian

• Belaz 548
  • Front Track: ca.2 750 millimeters
  • Rear Track: ca.2 260 / 2 830 millimeters
  • Wheelbase: 4 300 millimeters
  • Overall Car Length: 8 380 millimeters
  • Heigth: 3 675 millimeters
  • Width: ca.3 500 millimeters
  • Wheels (diameter): ca.1 950 millimeters
  • Tyres: Belshina Fbel-100A
  • Payload: 40 Tonnes

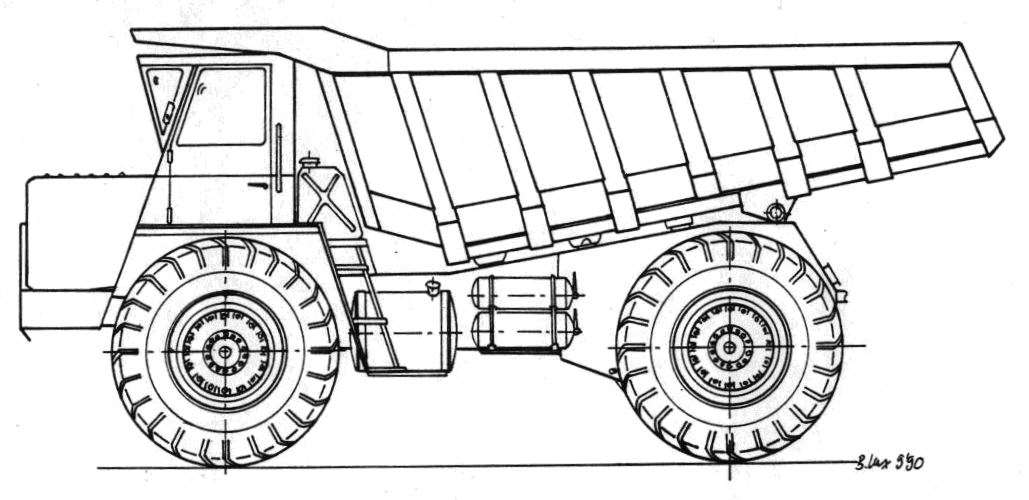

side view

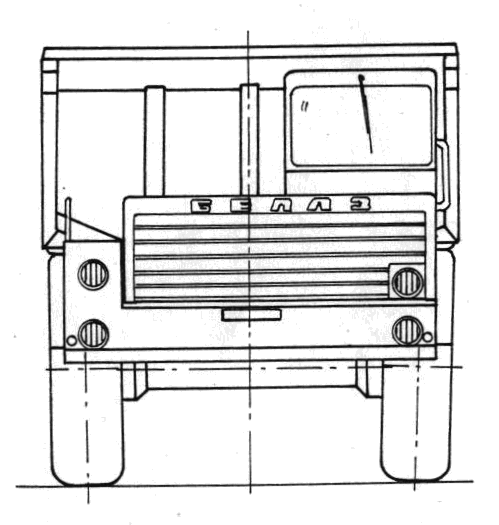

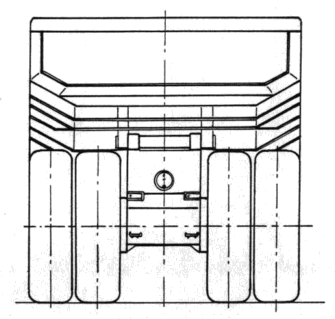

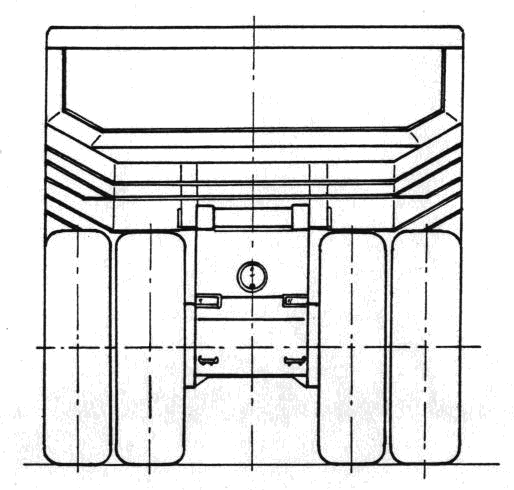

front / rear view

upload position
