Soviet - Analog BURAN space shuttle

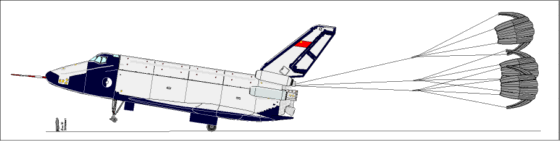

Analog BURAN
aircraft


(reuseable aerospace system for BURAN

* Developer:
G. Lozino-Lozinsky NPO Molniya Bureau
* Payload:
?? kg

to 200 km Orbit

- Payload bay 4.70 m x 18.3 m
- Total Habitable Volume: 73.00 m3
* Chronology:
- First Launch Date: 29-Sep-1984
- Last Launch Date: 15-Apr-1988
- Total number of launches: 25
- Number of Failure Launches: 0
- Success Rate: 100 %
* Engine:
- Engine: ??
- Number of Engines: 4
- Total Thrust (vac): ?
- Propellants: Kerosene
* Crew:
- crew: 2


* Spacecraft:
- Total Mass (max): ?? kg
- Empty Mass: ?? kg
- Length over all: 36.00 m
- wing Span: 24.00 m
- fuselage max. diameter: 5.60 m


/ back to the top of Soviet - Analog BURAN space shuttle /


Analog BURAN(2)
aircraft 2.version


Analog BURAN 2.version

/ back to the top of Soviet - Analog BURAN space shuttle /

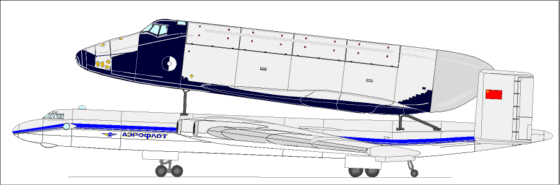

Analog BURAN - VM-3T
aircarrier

Carrier:VM-3TATLANT



VM-3T/Analog Buran

/ back to the top of Soviet - Analog BURAN space shuttle /


Artworks:

Soviet - Analog BURAN space shuttle

cd62-0050a1
BURAN Analog1
    => enlarge
    CDes# cd62-0050a1 => order now

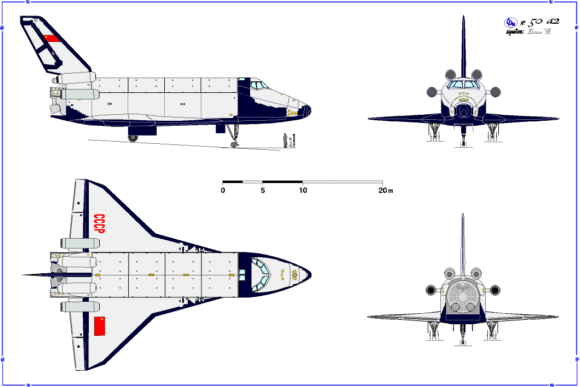

cd62-0050a2
BURAN Analog2
    => enlarge
    CDes# cd62-0050a2 => order now


cd62-0050bu
space shuttle BURAN
    => enlarge
    CDes# cd62-0050bu => order now

cd62-0050al
Launch ALBATROS
    => enlarge
    CDes# cd62-0050al => order now


cd62-0050ca
BURAN carrier
    => enlarge
    CDes# cd62-0050ca => order now

cd62-0050hi
BURAN history
    => enlarge
    CDes# cd62-0050hi => order now
