SUZUKI GSX 1300 R


Motorcycles: SUZUKI  GSX 1300 R

*Vers. 12/98


technical Specification: Hayabusa GSX 1300 R

The Dimensions:
Model: Hayabusa (jap.falcon)
Length: 2,140 mm
Wheelbase: 1,485 mm
Heigth: 1,185 mm
Seat Heigth: 805 mm
Width: 740 mm
Chassis: Al-profile
Front Brakes: 2 x diameter 320 mm
Rear Brakes: diameter 240 mm
Front Tyres: 120/70-ZR17
Rear Tyres: 190/50-ZR17
Front Wheels: 3.50 x 17
Rear Wheels: 6.00 x 17
max. Weight: 430 kg
Tank: 22 l
The Engine:
Typ: GSX 1300 R
Number of Cylinders: 4   -  4 stroke DOHC liquid-cooled engine
Number of Valves: 16 twin swirl combustion chamber
Total Displacement: 1,299 cc
Measurements:
Drill: 81,0 mm
Cubic: 63,0 mm
Electronic: starter
Gearbox: 6 - speed transmission with high-capacity clutch
Weight: 215 kg
Power: 175/98 hp  9,800/8,500 rpm.
The Manufacturer:
Brand Name: SUZUKI, Japan


brand name
* Brand name

Special views - Hayabusa

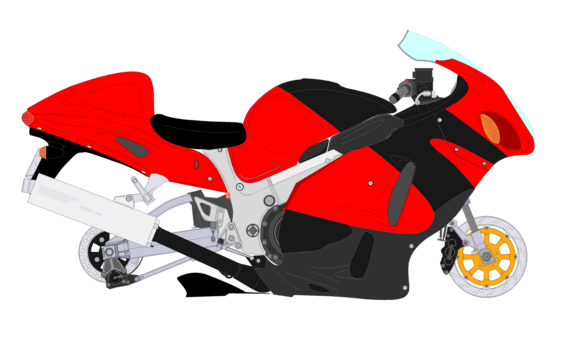

side view of Hayabusa 1998
* side view of Hayabusa 1998

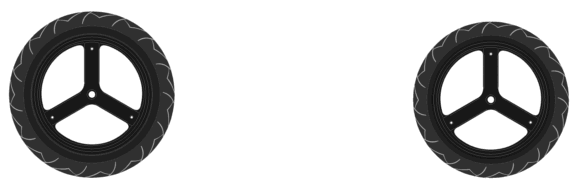

tyres
* tyres and weels

brakes
* brakes

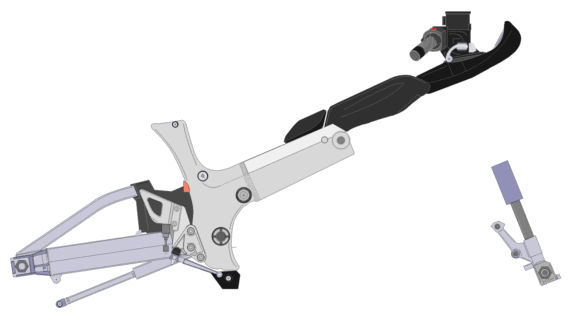

frame (visible part only)
* frame (visible part only)

engine (visible part only)
Hayabusa - Exhaust
* engine (visible part only) and exhaust

fairing
* fairing

Hayabusa - sticker
* sticker - Hayabusa
