Ferrari F2007 - 2007

Formula One car	Ferrari F2007	=> Formula One 2007
* rollout 14th Januar 2007

Chassis - Ferrari F2007

Engine - Ferrari 056-V8

Team - Ferrari

Chassis	carbon fiber and honeycomb composite structure
Overall Car Length	4,545 mm
Wheelbase	3,135 mm
Front Track	1,470 mm
Rear Track	1,405 mm
Heigth	959 mm
Width	1,796 mm
Wheels	13"
Tyres	Bridgestone
Rim	BBS
Total Weight	600 kg with water, lubrificant and driver

Number of Cylinders	8 in V
Number of Valves	32
Total Displacement	2,398 cc
Weight	app. 93 kg
Power	750 hp
Fuel and Lubricant	Shell
Gearbox	Rear-wheel drive, longitudinal semi-automatic sequential electronically controlled gearbox, 7 gears + reverse, carbon
Electronic	Magneti Marelli, digital electronic inigtion
Brakes	Brembo

Team
Leader	Stefano Domenicall
Technical director	Mario Almondo
Driver
No.5 - Name	Felipe Massa
No.6 - Name	Kimi Räikkönen
1.Test Pilot	Luca Badoer
2.Test Pilot	Marc Gené

Special views - Ferrari F2007
* top view of the Ferrari F2007

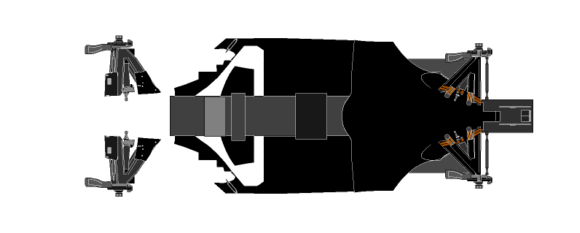

* breakes and ground of the Ferrari F2007

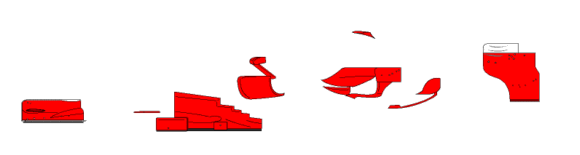

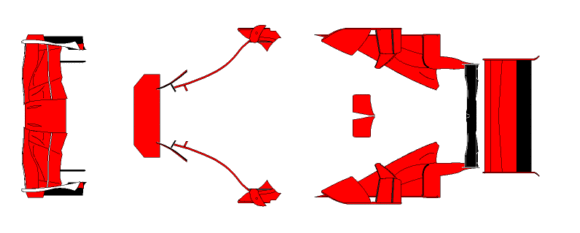

* wings of the Ferrari F2007
* chassis view of the Ferrari F2007
* view of the driver sea - Ferrari F2007

/ back to the top of Ferrari F2007 - 2007 /
